2-points MGD controller
- Infrared or semiconductor sensor options
- System solution for 1, 2, 4 or 6 sensors
- Detects refrigerants, CFC, HCFC, HFC, Ammonia, Carbon Dioxide and combustible gases
- IP66 housing options, including remote and duct mount sensors
- Built-in relay for 1 or 2 pre-set alarm levels
The MGD-100 is an affordable and scalable gas detection system used to provide real-time monitoring of refrigerant and combustible gases, ammonia and carbon dioxide. The unit alarms when pre-set thresholds are exceeded. Alarms are monitored by a centralized controller, which can alert personnel of potential hazardous conditions via an onboard buzzer and LED alarm indicators.
The unit can be configured from single-sensor, one-alarm level system to larger scale systems consisting of 6 sensors with 2 alarm levels. The instruments are connected to and powered by the MGD controller. A variety of housing options are available including IP41 and IP66 rated enclosures, which enable direct placement of the MGD-100 in a variety of environments. For special applications, the sensor can be remotely mounted from the instrument.

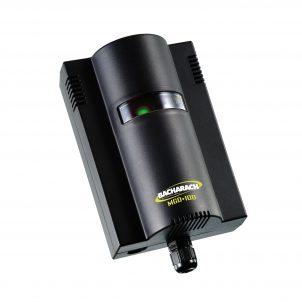

IP41 Detektor

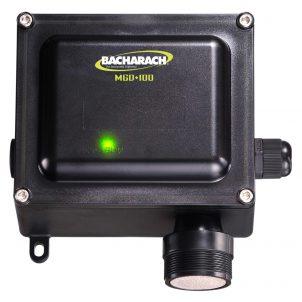

IP66 Detektor

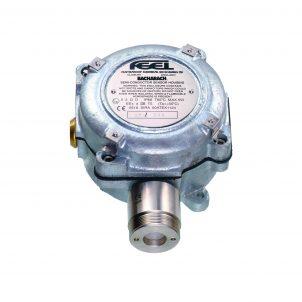

EX Detektor
SPECIFICATIONS
| Type | Gas detector using IR or semiconductor sensor | |
| Gases | Refrigerants: | Ammonia (NH3), Carbon Dioxide (CO2), Hydrocarbons, and HFCs, HCFCs, CFCs |
| Combustible gases: | Methane (CH4), Propane (C3H8), Butane (C4H10), LPG, and Hydrogen (H2) | |
| Measuring Range * | ppm, %LEL or Vol% | |
| Status Indicators | 1 alarm system green and red LEDs | |
| 2 alarm system green, yellow and red LEDs | ||
| Power Supply | 12 VDC or 100-230 VAC 60 / 50 Hz | |
| Distance of Sensor from Controller | 1 or 2 sensor 200 ft (60 m); 4-wire | |
| 4 or 6 sensor 500 ft (150 m); 4-wire | ||
| Audible Alarm | Buzzer | |
| Relay * | 1 or 2 alarm relay, SPDT | |
| Rating 10 A @ 120 / 230 VAC, resistive load | ||
| Ambient Conditions* | Temperature | IP41 - 4 to +122 °F (- 20 to +50 °C) |
| IP66 - 40 to +122 °F (- 40 to +50 °C) | ||
| Humidity | 0 to 95 %RH, non condensing | |
| Altitude | 0 to 10,000 ft (3,050 m) | |
| Controller Enclosure | powder coated aluminum, M20 cable gland, IP51 | |
| Size (w x h x d)
Approx. |
1 or 2 sensors 4.1” x 8.4” x 3.2” / 105 x 215 x 85 mm | |
| 4 or 6 sensors 10.4” x 10.3” x 3.3” / 265 x 265 x 85 mm | ||
| Weight Approx. | 1 or 2 sensors 2.9 lbs / 1.3 kg | |
| 4 or 6 sensors 5.7 lbs / 2.6 kg | ||
| Instrument Enclosure | ABS; M20 cable gland | |
| Size (w x h x d)
Approx. * |
IP41 3.4” x 5.6” x 2.1” (90 x 145 x 55 mm) | |
| IP66 6.5” x 6.9” x 3.3” (165 x 175 x 85 mm) | ||
| Ex d 5.2” x 6.3” x 3.6” (135 x 160 x 95 mm) | ||
| Weight Approx.* | IP41 6.3 oz (180 g) | |
| IP66 22 oz (623 g) | ||
| Ex d 9.3 lbs (4.2 kg) | ||
| Approvals | CE, UL, CSA, IEC, EN 61010-1 | |
| * See datasheet for details | ||
